The latest and the best leading standalone ECU on the market

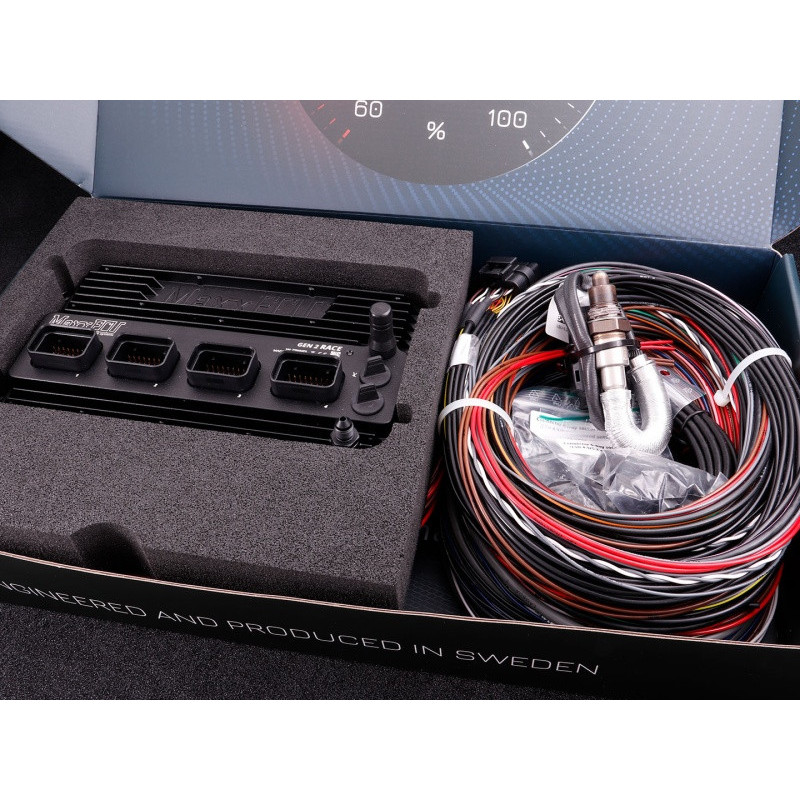

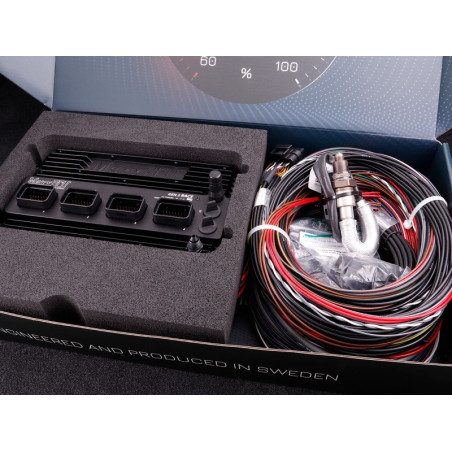

MaxxECU Gen 2 Race with Dual LSU 5.2, flying lead install kit
MaxxECU GEN2 RACE technical:
- IP68 water-protected.
- Superseal 1.0 connectors.
- 550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable, with BSP 1/8 thread.
- 3-axis accelerometer (up to 8 G).
- ARM dual core CPU.
- 6-22V operating voltage.
- 16GB internal log capacity, 1000Hz, all 1600+ channels.
- USB-C 480mbit/s (MTune PC communication).
- USB-C 12mbit/s (tablet charging).*
- WIFI communication with MTune and MDash.*
- Bluetooth connectivity with MDash.
- Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control.
- Resolution on ignition: 0.1 degrees.
- Resolution on injectors: 0.001 ms.
- Performs fuel and ignition calculations 3,000 times per second.
- 200Hz sampling rate on all EGT inputs.
- 2000Hz sampling rate on analog/digital inputs.
- Weight: 700g.
- 240x138x35mm including protruding connectors.
- Black powder-coated aluminium case.
- All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits.
- *WIFI and USB Port2 not yet supported for communication - coming in 2026.
MaxxECU GEN2 RACE inputs
- 8 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
- 24 Analog inputs (selectable pullups).
- 8 Exhaust Gas Temperature inputs (TYPE-K).
- Dual wideband lambda (LSU 5.2/4.9/4.2).
- Dual knock sensor input.
MaxxECU GEN2 RACE outputs
- 16 injectors (Peak-hold high/low impedance) / GP outputs.
- 12 IGN / GP outputs (selectable +5V/12V/GND).
- 8 GP Outputs (GND).
- 4 GP Outputs (+12V).
- 4 GP Outputs (H-bridge/E-Throttle).
